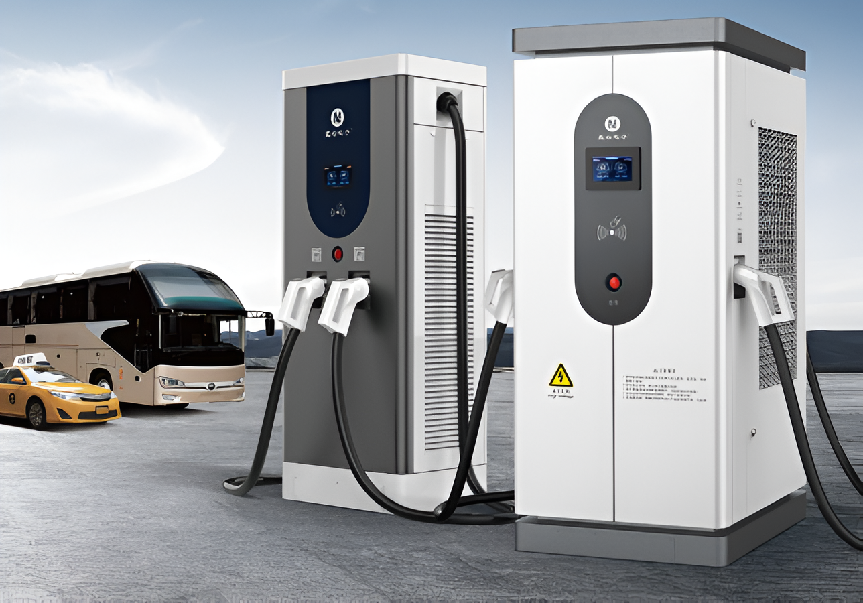

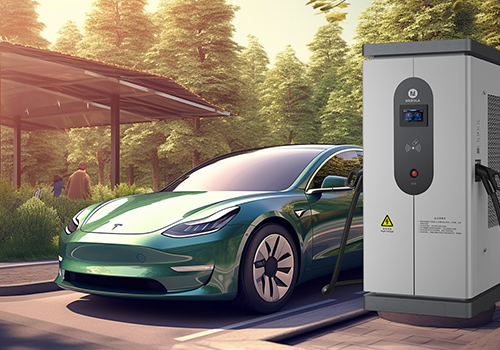

Integrated DC Charging Pile

RAchieve national CQC certification through type tests

RWide voltage range output to meet charging needs from cars to buses

RProvide DC fast charging technology with high-power single-gun output, meeting fast charging requirements

RIncorporating detection technology algorithms for power batteries, providing active charging protection for new energy vehicles

RModular design realizes remote fault diagnosis for convenient operation and maintenance

RCompatible with both old and new national standards, supporting multiple payment methods

Model

NEAOCDC-

12075025002-E101

NEAOCDC-

18075025002-E101

NEAOCDC-

24075025002-E101

DC Output Voltage Range

200-750V

200-750V

200-750V

Output Current Range

0-250A

0~250A

0-250A

Maximum Output Power

120kW

180kW

240kW

Equipment Dimensions

W*D*H:700*500*1750

W"D*H:830*830*1850

W*D*H: 830*830*1850

Charging Cable Length

5m（Customizable）

Device Display

7-inch touchscreen

IP Rating

IP54

Charging Method

Single/Even

Single/Even/Dynamic Allocation

Single/Even/Dynamic Allocation

Operating Temperature

-20~55°C

Altitude

≤2000m

Current Measurement and Control Accuracy

≥30A：not exceeding ±1%

＜30A：not exceeding ±0.3A

Voltage Measurement and Control Accuracy

≤±0.5%F.S.

Protection Functions

Over-voltage protection, under--voltage protection, over-current protection, overload protection, short circuit protection, reverse connection protection, communication interruption protection, etc.

Over-voltage protection, under-voltage protection, over-current protection, overload protection, short circuit protection, reverse connection protection, communication interruption protection, access control protection, water immersion protection, among others.

Certifications

CQC
